Start the Engine and Look for Leaks

Final test:

With all the parts back in their respective locations, all fluids filled and a temporary wooden plug shoved into the oil fill hole, I was ready to start the engine and see what I screwed up. I was seriously expecting some obnoxious clanking sound indicating some bit or another was left lying about inside the case. I was wrong. The engine started normally, sounded as it always had and best of all the oil pressure was back! I was now getting about 70 psi at half to three-quarters throttle and about 45 at idle. Problem solved. I only wish I knew what I did.

All done. Looks no different.

Okay, I think I really do know and it is rather embarrassing to admit that I probably did not need to replace the oil pump or any of the rubber or gaskets inside the case. When I had the case off I pulled a couple of bolts off because it was not obvious what they did or what lay behind them. One of the bolts looked suspiciously like the bolts that sealed the two pressure release valves on the oil filter assembly. These pressure relief valves are very simple -- just a spring with a ball bearing in a channel. The spring holds the ball against a seal and when the pressure is too high the spring compresses, the ball moves and the oil pressure is released back into the crankcase. Looking at the exploded parts diagram it appeared that this was another of those relief valves but did not have the spring or ball inside. This valve was not mentioned in the service manual so I only knew of it from the parts diagram. I wasn't sure if this was one of the modifications to the engine that Universal had made or whether the spring and ball should really be there and just were missing. I ordered the parts anyway and this, their absence, was, I suspect, the reason for the low oil pressure. Of course, that means that I had been running the engine for four years with low oil pressure. I have no idea why those bits were missing. Sigh. So now I have a new oil pump, new rubber and gaskets inside the timing case and oil pressure. Hopefully I will not have to repeat this for another decade or two.

Reassembly

Reassembly

Putting it all back together is just the opposite of taking it apart. Hopefully you kept track of all the bolts and other bits. The first step is to clean the two faces where the gasket will be -- on the case and on the block. I used a plastic scrub pad and 400 grit sandpaper for this job. The case gasket is large and complicated and you might want to use a spray adhesive to attach it just to make sure it doesn't move on you. In my case it worked fine without.

Next is reassembling the bits in the case and on the block. The exploded parts diagram referenced in the previous "parts" post is very useful here. These include:

• The three small o-rings on the case that seal the channels around the oil filter. These I replaced.
• Replace the large o-ring around the coolant pipe that sticks out on the top of the block.
• Reassemble the crankshaft -- large washer, o-ring, and collar.
• Make sure the part that connects the raw water pump is aligned with the slot in the timing gear.

Now all that remains is to line up the case and as you put it in place gently slip the crankshaft oil seal over the crankshaft. Push the case toward the block as far as it will go. In my case, the raw water pump attachment was not perfectly aligned with the timing gear so I put a pair of vice grips on the splined end of the crankshaft and slowly turned the shaft while pressing on the case until the case was flush with the block and gasket. Before starting all this I laid out the four corner case bolts and had a small cup of oil ready. The case bolts should go in "wet", that is dipped in oil, to prevent leakage from the back of the bolts. I inserted the four corner bolts to hold the case it place, then put in the rest of the bolts. Again I do not know what the torque specs on these bolts are so I tightened them as much as I dared. The case is now bolted in place.

Then we reassemble the rest of the bits:

• The hoses to the raw water pump.
• The short hose that connects the internal coolant pump to the block.
• The coolant hose on the lower right side of the case.
• The gasket for the speed control assembly.
• The two springs inside the speed control assembly. These were easy to attach with the case in place. The small spring attaches to the right hand lever that is coming out of the block and to a stud on the inside of the case. The large spring attaches to the left hand lever and to the triangular lever on the speed control plate.
• Bolt down the spring control plate.
• Attach the throttle linkage to the spring control plate.
• Replace the windsor key in the crankshaft if you have not done that yet.
• Attach the crankshaft pulley, large washer and nut. Tighten the nut which will push the pulley on to the shaft.
• Put the alternator back and reattach the wires
• Place and tighten the alternator belt.
• Attach the air breather assembly.

The last step is to refill all the fluids -- oil and coolant. Oh, and don't knock the oil filler plug into the only utterly inaccessible spot in the engine compartment. This will provoke cursing and self-loathing. Trust me. When adding coolant remove the plug from the thermostat housing and fill that area with coolant as well as the main reservoir. Learned that the hard way too.

Removing the front gear case

The Gear Case

Removing the gear case is as simple as removing the 11 bolts around the edges. Each bolt is a different length so I made a map and labeled them as I took them out. It will make putting the right bolt back in the right place easy.

The case came off without a hitch, though some of the bolts were very tight and corroded. Thankfully none broke in the process. It would probably have been a good idea to hit those bolts that can be located on the block with PB Blaster or some other penetrating oil. I lucked out.

There is a windsor key on the crankshaft that keys the balancing pulley. I should have removed this before removing the case as the crankshaft oil seal had to pass over it. Thankfully I did not damage the seal, but I might have. Better safe than sorry. Next time.

Once the case was off, the timing gears and the oil pump were exposed. In the picture to the right the upper right hand gear is the camshaft gear. The upper left is the timing gear connected to the timing pump. The middle gear connects the crankshaft gear below to both the camshaft and the timing gear. The oil pump gear is the small gear below the crankshaft.

In order to remove the oil pump gear one must first remove the windsor key, collar and oil deflecting washer that are on the crankshaft. The windsor key is the only potentially difficult part. I tried prying it off, banging on it, vice grips, heat -- to no avail. Joe, one of my boat neighbors and retired metalworker was nearby and said that an "old timer" told him to just tap it gently a couple of hundred times with a ball peen hammer and it will eventually loosen. Then it can be removed with pliers. Joe offered to give it a try and had the key out in about five minutes. Yes, I felt rather stupid but was pleased to learn this trick. I have a plastic headed hammer that I use to bang on metal, especially aluminum, so I don't damage it. If you are using a ball peen be careful not to damage the key too much or you will wind up replacing it. Once the key is removed the collar, o-ring and large washer come off easily. Now you are ready to pull the oil pump gear.

There is a nut on the oil pump shaft and a soft, bent lock washer that must be removed before the gear will come off. A small gear puller makes removing the gear easy. It is just on a tapered shaft. As with the crankshaft pulley start gently until you feel the gear start to come off. Once this gear is removed the oil pump will unbolt with four bolts in the the corners. The original pump had 3 bolts that attached the two parts of the pump housing together. The replacement pump had only one. In any case, there is a small, shallow cylindrical extrusion on the back center of the pump that positions the pump in the block. This is a very tight fit and required a bit of tapping around the edges to spin the pump loose from the gasket. Once the pump is removed all that is left is to scrape off the gasket and clean the block, add the new gasket, making sure the holes all line up and bolt on the new pump. I have no idea what the torque specs are on these bolts so I tightened them as much as I dared. Aluminium threads strip easy.

You may recall that I thought the cause of my low oil pressure was the camshaft plug coming out of the end of the shaft. As you can see on the image to the left, the plug is still in place. This was worrying. Additionally I could see no visible wear on the old oil pump so perhaps all this was in vein.

There is a plug on the other end of the camshaft and I spent some time asking around to see if anyone had removed their camshaft and how it was attached at the other end. It looked like a big job, with the header and rocker arms having to come off so all the valves could be raised to create enough clearance for the shaft to come out.

Having just spent about 4K on the boat over the summer I really did not want to undertake the expense of paying a mechanic to remove the shaft. If I had the engine out and sitting on the bench it would have been a piece of cake and I would not have hesitated to give it a try. So I dithered and dwelled on the problem for a couple of weeks. In the end I decided that I had spent enough money on the boat this year and would just reassemble the case and deal with it in the spring. This was frustrating. Oddly, I would have been happier if the damn camshaft plug was missing!

Replacing the oil pump 3 -- First Steps and Overview -- Universal 5424 M30

Starting the job -- Overview:

(photos to come ...)

First ...

• Make sure all seacocks are closed!
• Put oil and coolant absorbing materials under the engine. Prepare for spills!

Then ...

• Drain both the coolant and oil from the engine. Remove oil filter.
• Disconnect batteries
• Remove alternator and belt
• Remove Air breather/filter
• Remove coolant hose from lower right side of front case
• Remove small coolant hose from internal water pump
• Remove hose from raw water pump to heat exchanger
• Remove hose from seacock to raw water pump
• Remove crankshaft pulley
• Remove throttle linkage from speed control
• Unbolt speed control panel on top of case and access cover on left side of injection pump
• Remove two springs from speed control group
• Remove speed control group

NOTE: The internal water pump and the raw water pump can be left on the front cover. The only part, other than bolts and the hoses mentioned above, that connect the front cover to the engine block are the two springs on the speed control plate.

Details

1. I assume you know how to drain the engine oil and coolant and remove the oil filter.
2. The batteries should be disconnected so you don't short out the alternator or regulator when disconnecting the alternator leads. Otherwise removing the alternator and belt is straightforward. As always tape and label the leads if you think you will not remember where they attach to the alternator.



   Alternator, bolts and belt








   Air breather/filter assembly

3. Removing the air filter/breather is as simple as disconnecting the hose to the air intake on the engine block.
4. Removing the coolant hose from the water pipe on the right side of the engine is largely uneventful. If you have a water heater connected to your coolant system this hose may spill coolant so be prepared to catch any spills.
5. The short hose that connects the engine block to the internal water pump may leak a bit as well.
6. Both hoses connected to the raw water pump will leak sea water. No worries.
7. Ah, the crankshaft pulley ... this can be a bear. The nut holding the crankshaft pulley is huge -- 46mm. Kubota makes a special deep well socket for the nut if you want to spring for it. Otherwise you may have to fabricate your own. In my case the nut came off easily by tapping a corner of the nut with an old screwdriver and hammer.





Crankshaft pulley, nut and washer

1. Behind the nut is a washer. Remove it as well.
2. You will need a gear puller to remove the pulley as it is on a tapered shaft. Do this gently especially if the pulley has not been removed in the past 30 years or so.
3. Once the pulley is off you should see the black oil seal around the exposed end of the crankshaft. This seal is inserted in the front gear cover and will come out with and when the cover is removed.
8. The speed control panel is attached with four nuts/bolts on the top of the front gear case. It has a spring loaded lever on top. The linkage is connected with a small nut attached this lever.
9. The front left and rear right nuts on the speed control panel are attached to studs that are inserted in the front gear case. The remaining two are bolts that will come out of the case. The access panel is located on the top left side of the engine. It should have a warning label attached to it.
10. Do NOT force the speed control panel when removing it. There are two small springs, one attached to the lever on the speed control panel and a smaller one attached to an internal stud on the front gear case. At this point you only need to remove the larger spring attached to the lever on top of the speed control panel. I found this easiest to do by by gently lifting the panel off the studs and using a pair of angled pliers to get  at the point where the spring attaches to the lever. I left the spring attached to the linkage in the engine block. Do not stretch or otherwise damage this spring or you will have to replace it.



Speed control panel, bolts, nuts to studs, gasket and small spring.

11. Once the spring has been removed the speed control panel and gasket can be removed. Look in the hole you just created in the top of the front gear cover and you should see the smaller spring on the right side. It is easy to get to now.
12. Now that you have removed all these bits, you are ready to remove the front gear case.

All bits removed and front case is ready to be unbolted.

Parts List -- Universal 5424 M30

First things first -- The parts:

If you haven't heard, the Universal 5424/M30 is a marinized version of the Kubota D-1101 engine block used in Kubota's L245 tractor. It is much cheaper to get engine parts from your local Kubota dealer than from Univeral/Westerbeke. Of course, the parts that are specific to a boat and not a tractor must be acquired from Westerbeke. If you go to a Kubota tractor dealer for parts you will have to reference the L245 tractor as they probably will not know the engine apart from the tractor that uses it.



I found a comprehensive list of Kubota part numbers for this engine. You can find it here.

As you can see there is a significant savings if parts are bought from Kubota directly. With this job I saved $ 250: $145 from Kubota and $395 from Westerbeke. This, for the same parts!

Replacing the oil pump -- Universal 5424 M30

Low Oil Pressure

The story begins when I finally got around to replacing the oil pressure switch. When I purchased Elizabeth the oil pressure idiot light did not work and it took me almost four years to get around to replacing it. Stupid, I know. When I replaced the switch and started the engine the light came on and would not go off. Stupid, I know. Still, the engine has always ran fine, sounds good, does not overheat. Oil obviously circulates as it gets dirty and the oil filter fills. I was not sure if the new oil pressure switch was bad or if indeed the pressure was low. I purchased an oil pressure testing gauge as well as a mechanical gauge to replace the idiot light so I would always know exactly what the oil pressure was. Testing the pressure at the switch port I discovered the pressure at idle was about 5psi and at half throttle around 15psi. The specs on the oil pressure switch suggest that it will circuit will be broken (the light will go off) between 30psi and 60psi. So theoretically, this should be the normal range of the oil pressure. Mine is way too low. I installed the mechanical gauge and the readings were the same. At this point I was feeling really stupid for waiting so long.

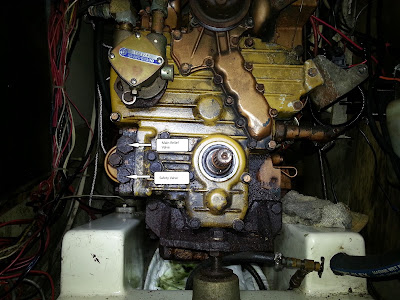

So now what? There are many potential causes for low oil pressure. I first went through the obvious and easy possibilities; wrong oil, low oil level, clogged or faulty oil filter. All were good. The next easy cause is one of the two oil pressure relief valves being stuck in the open position, tricking the engine into thinking the pressure was too high and returning the oil to the sump without sending it to the rest of the engine. I removed and cleaned them and still the problem persisted. The problem still could be as simple as the primary oil filter, just a screen really, being clogged with crud. This filter is located on the pickup tube in the crankcase. To get at it, however, is not so easy as the engine would have to be lifted out of the boat to remove the crankcase. Along the same lines the pickup tube that is immersed in the oil and carries the oil to the oil pump may have become disconnected. This, as well is under the engine in the crankcase. Uh oh, major expense.

So that brings me to where we are today. Before pulling the engine I can replace the oil pump itself and check the forward plug on the camshaft. These are two possible culprits as well and can be accessed from the front of the engine. A big(ish) job to be sure and one I have never undertaken before on this engine. Sigh. So here goes.
